Unidirectional TVS Diode for surge suppression, featuring a 5V reverse standoff voltage and 6.2V minimum breakdown voltage. This surface mount component offers a 5V working voltage, 18.6V clamping voltage, and 80pF capacitance. It handles a peak pulse current of 11.6A with a maximum power dissipation of 200mW and operates across a wide temperature range from -55°C to 150°C. RoHS compliant and supplied in tape and reel packaging.
Capacitance80pF
Voltage Rating5V
MountingSurface Mount
Quick Jump:
Technical Specifications
MCC ESD5V0D5-TP technical specifications.
General
| Capacitance | 80pF |
| Clamping Voltage | 18.6V |
| Depth | 0.85mm |
| Diode Type | ZENER |
| Direction | Unidirectional |
| Leakage Current | 80nA |
| Length | 1.3mm |
| Min Breakdown Voltage | 6.2V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 200mW |
| Mount | Surface Mount |
| Number of Unidirectional Channels | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 11.6A |
| Peak Pulse Power | 174W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 5V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Working Voltage | 5V |
Compliance
| RoHS | Compliant |
Datasheet
MCC ESD5V0D5-TP Datasheet
Download the complete datasheet for MCC ESD5V0D5-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

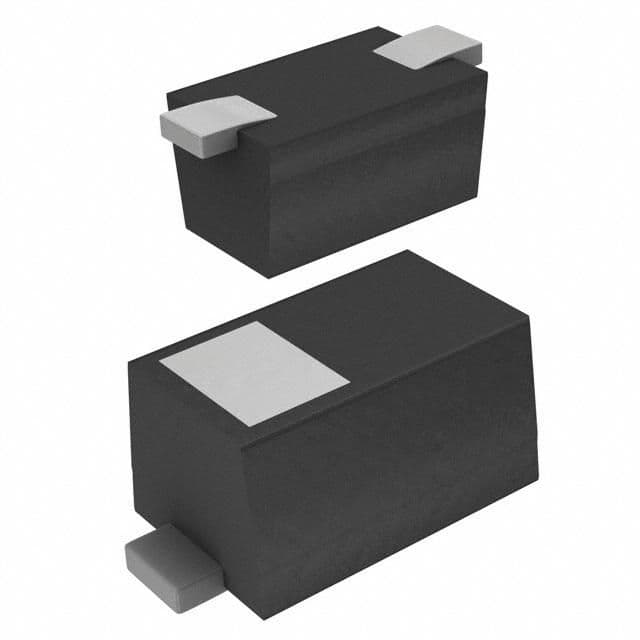

Product Images
