Bidirectional ESD suppressor diode for surface mount applications. Features a 5V working voltage, 5.8V minimum breakdown voltage, and 13V clamping voltage. Offers 12A peak pulse current and 150W peak pulse power with a low leakage current of 1uA. Operates across a wide temperature range from -55°C to 150°C. Supplied in tape and reel packaging with 8000 units per package.
Capacitance32pF
Voltage Rating5V
MountingSurface Mount
Quick Jump:
Technical Specifications
MCC ESD5V0D5B-TP technical specifications.
General
| Capacitance | 32pF |
| Clamping Voltage | 13V |
| Depth | 0.85mm |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Leakage Current | 1uA |
| Length | 1.3mm |
| Min Breakdown Voltage | 5.8V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 1 |
| Package Quantity | 8000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 12A |
| Peak Pulse Power | 150W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 5V |
| RoHS Compliant | Yes |
| Working Voltage | 5V |
Compliance
| RoHS | Compliant |
Datasheet
MCC ESD5V0D5B-TP Datasheet
Download the complete datasheet for MCC ESD5V0D5B-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

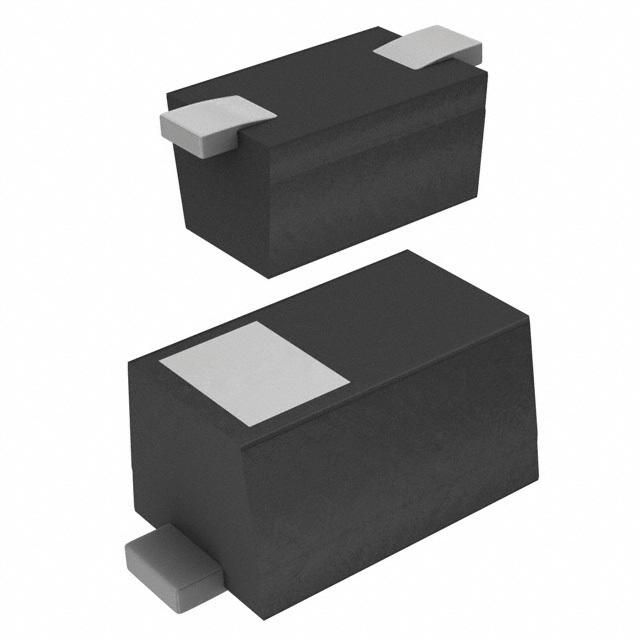

Product Images
