Quick Jump:
Technical Specifications
MCC GBJ3502-BP technical specifications.
General
Forward Current
35A
Height
20.3mm
Length
30.3mm
Max Forward Surge Current (Ifsm)
350A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
200V
Max Reverse Current
10uA
Mount
Through Hole
Number of Elements
1
Package Quantity
750
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
350A
Radiation Hardening
No
RoHS Compliant
Yes
Width
4.8mm
Compliance
RoHS
Compliant
Datasheet
MCC GBJ3502-BP Datasheet
Download the complete datasheet for MCC GBJ3502-BP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

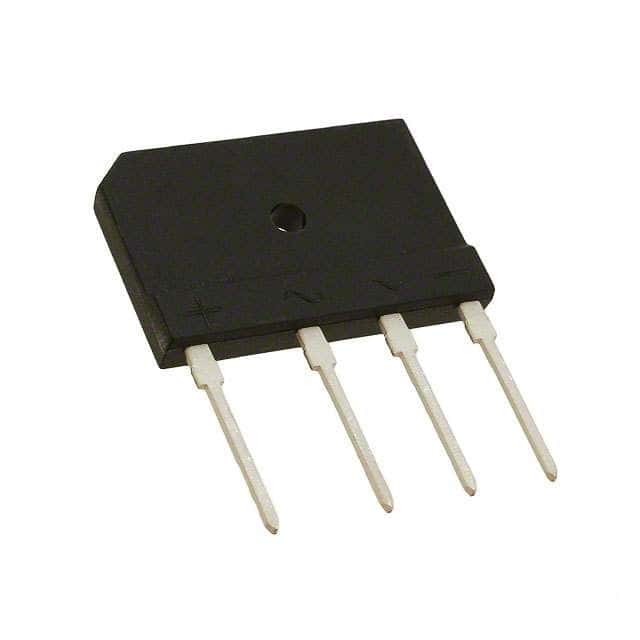

Product Images
