Technical Specifications
MCC GBU4J-BP technical specifications.
General
Capacitance
45pF
Current Rating
4A
Forward Current
4A
Height
18.8mm
Lead Free
Lead Free
Length
22.3mm
Max Forward Surge Current (Ifsm)
150A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
5uA
Max Reverse Leakage Current
5uA
Max Surge Current
150A
Mount
Through Hole
Number of Elements
1
Output Current
4A
Package Quantity
1000
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
150A
Radiation Hardening
No
RoHS Compliant
Yes
DC Rated Voltage
600V
Width
3.56mm
Compliance
RoHS
Compliant
Datasheet
MCC GBU4J-BP Datasheet
Download the complete datasheet for MCC GBU4J-BP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

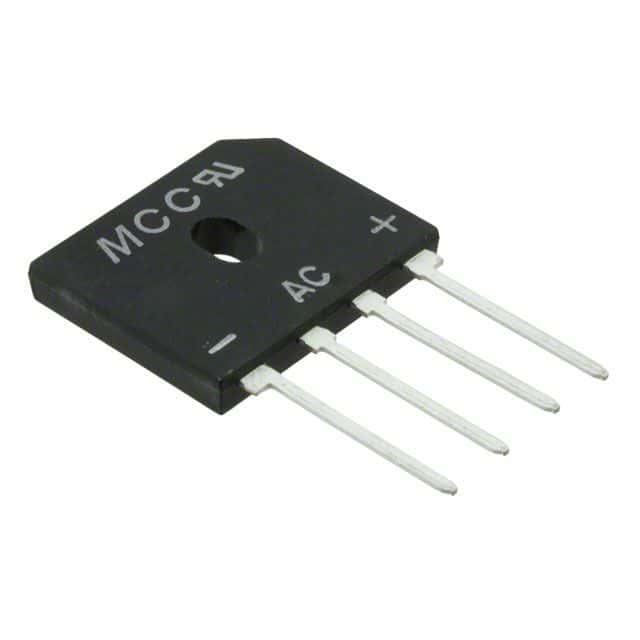

Product Images
