Technical Specifications
MCC GBU6G-BP technical specifications.
General
Capacitance
50pF
Current Rating
6A
Forward Current
6A
Height
18.8mm
Lead Free
Lead Free
Length
22.3mm
Max Forward Surge Current (Ifsm)
175A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
400V
Max Reverse Current
5uA
Max Reverse Leakage Current
5uA
Max Surge Current
175A
Mount
Through Hole
Number of Elements
1
Output Current
6A
Package Quantity
1000
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
175A
RoHS Compliant
Yes
DC Rated Voltage
400V
Width
3.56mm
Compliance
RoHS
Compliant
Datasheet
MCC GBU6G-BP Datasheet
Download the complete datasheet for MCC GBU6G-BP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

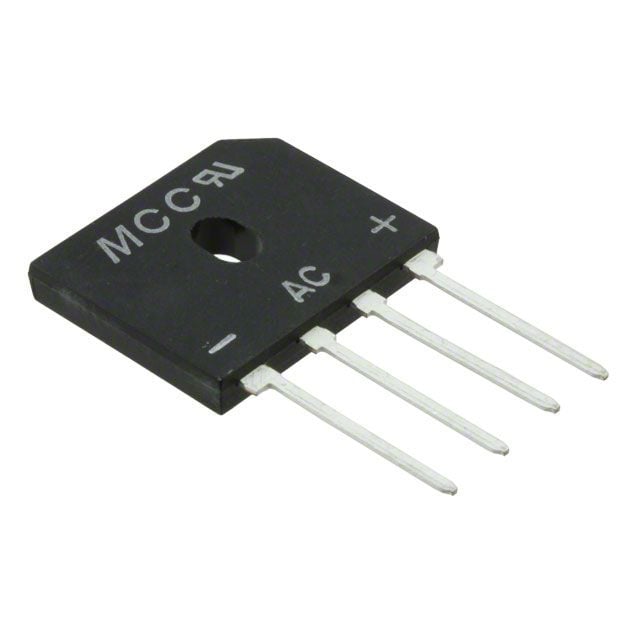

Product Images
