Single-phase bridge rectifier with 8A average rectified current and 600V repetitive reverse voltage. Features a 200A maximum surge current capability and a low 5uA reverse leakage current. Operating temperature range spans from -55°C to 150°C. This through-hole component has a 60pF capacitance and is RoHS compliant.
Capacitance60pF
Current Rating8A
MountingThrough Hole
Quick Jump:
Technical Specifications
MCC GBU8J-BP technical specifications.
General
Average Rectified Current
8A
Capacitance
60pF
Current Rating
8A
Forward Current
8A
Height
18.8mm
Lead Free
Lead Free
Length
22.3mm
Max Forward Surge Current (Ifsm)
200A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
5uA
Max Reverse Leakage Current
5uA
Max Surge Current
200A
Mount
Through Hole
Number of Elements
1
Output Current
8A
Package Quantity
1000
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
200A
Radiation Hardening
No
RoHS Compliant
Yes
DC Rated Voltage
600V
Width
3.56mm
Compliance
RoHS
Compliant
Datasheet
MCC GBU8J-BP Datasheet
Download the complete datasheet for MCC GBU8J-BP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

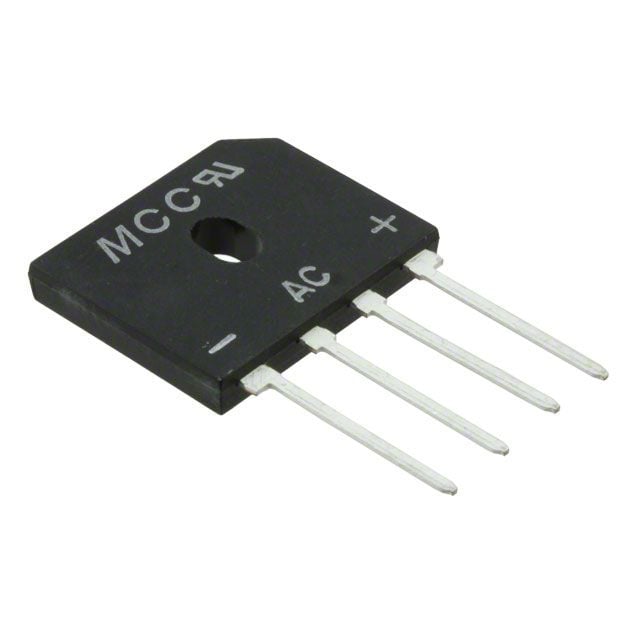

Product Images
