General purpose rectifier diode, 1A average rectified current, 1kV maximum repetitive reverse voltage. Features a 1A forward current, 30A peak non-repetitive surge current, and 15pF capacitance. Packaged in a DO-214AC surface mount case, this lead-free and RoHS compliant component operates from -55°C to 150°C.
PackageDO-214AC
Capacitance15pF
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
MCC GS1M-TP technical specifications.
General
Average Rectified Current
1A
Capacitance
15pF
Package/Case
DO-214AC
Current Rating
1A
Forward Current
1A
Height
2.44mm
Lead Free
Lead Free
Length
4.57mm
Max Forward Surge Current (Ifsm)
30A
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
1kV
Max Reverse Current
10uA
Max Reverse Voltage (DC)
1kV
Max Surge Current
30A
Mount
Surface Mount
Output Current
1A
Package Quantity
3000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
30A
Polarity
Standard
Radiation Hardening
No
Reverse Voltage
1kV
RoHS Compliant
Yes
DC Rated Voltage
1kV
Width
2.84mm
Compliance
RoHS
Compliant
Datasheet
MCC GS1M-TP Datasheet
Download the complete datasheet for MCC GS1M-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

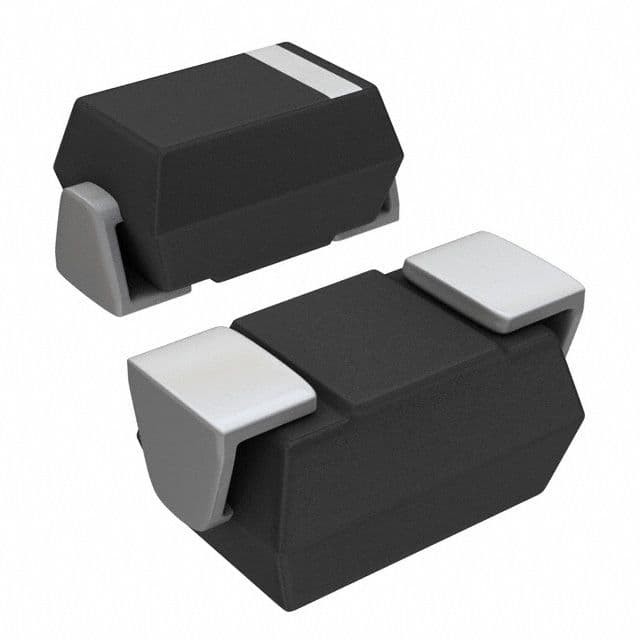

Product Images
