Surface mount bridge rectifier with 500mA average rectified current and 100V DC rated voltage. Features a 35A peak non-repetitive surge current and 5µA maximum reverse leakage current. Operating temperature range from -55°C to 150°C. This RoHS compliant component has a capacitance of 25pF and is supplied on tape and reel.
Capacitance25pF
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
MCC MB1S-TP technical specifications.
General
Average Rectified Current
500mA
Capacitance
25pF
Current Rating
500mA
Height
2.7mm
Lead Free
Lead Free
Length
4.95mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
100V
Max Reverse Current
5uA
Max Reverse Leakage Current
5uA
Max Surge Current
35A
Mount
Surface Mount
Number of Elements
1
Output Current
500mA
Package Quantity
3000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
35A
Radiation Hardening
No
RoHS Compliant
Yes
DC Rated Voltage
100V
Width
4.2mm
Compliance
RoHS
Compliant
Datasheet
MCC MB1S-TP Datasheet
Download the complete datasheet for MCC MB1S-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

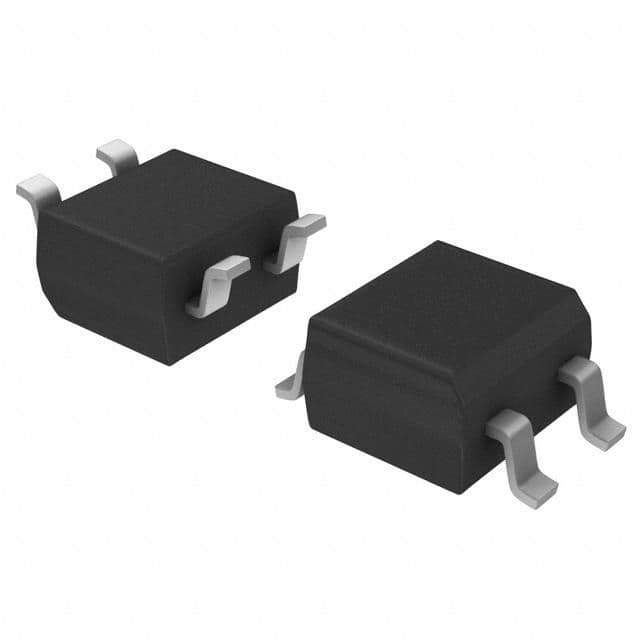

Product Images
