The MMBD4448DW-TP is a surface mount general purpose rectifier with a maximum operating temperature of 150°C and a minimum operating temperature of -65°C. It has a maximum reverse voltage of 75V and a maximum reverse leakage current of 2.5uA. The device is lead free and RoHS compliant, packaged in a tape and reel format with a package quantity of 1. It has a power dissipation of 200mW and a reverse recovery time of 4ns.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the MCC MMBD4448DW-TP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
MCC MMBD4448DW-TP technical specifications.
| Average Rectified Current | 250mA |
| Capacitance | 4pF |

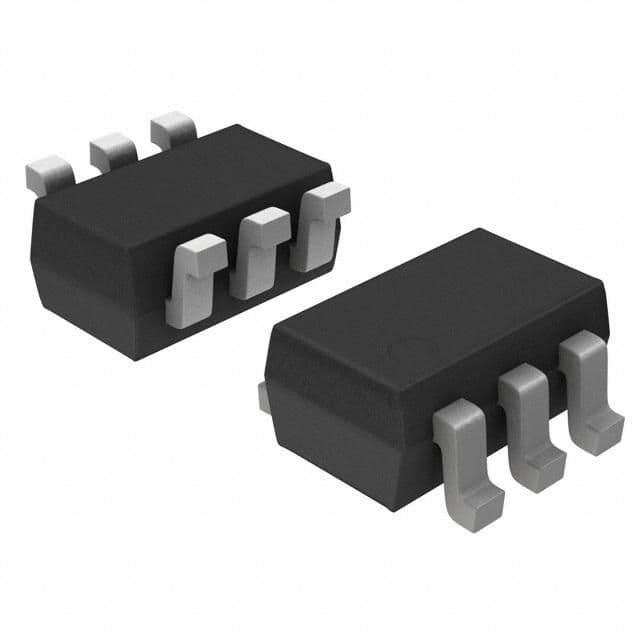

| Package/Case | SOT-363 |
| Current Rating | 500mA |
| Forward Current | 500mA |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 75V |
| Max Reverse Leakage Current | 2.5uA |
| Max Reverse Voltage (DC) | 75V |
| Max Surge Current | 4A |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Reverse Recovery Time | 4ns |
| Reverse Recovery Time-Max | 4ns |
| RoHS Compliant | Yes |
| DC Rated Voltage | 75V |
| RoHS | Compliant |
