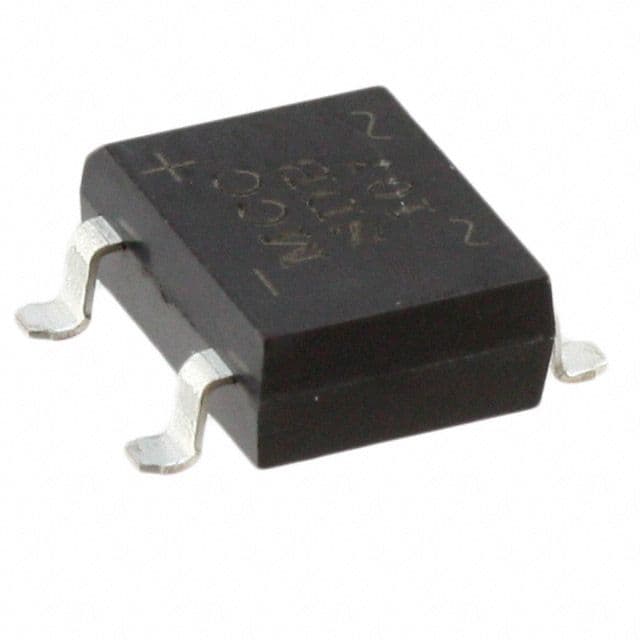

The SDB107-TP is a surface mount diode with a maximum operating temperature range of -55°C to 150°C. It has a maximum repetitive reverse voltage of 1kV and a maximum reverse current of 10uA. The diode can handle a maximum surge current of 50A and a peak non-repetitive surge current of 50A. It is lead free and RoHS compliant, packaged in a tape and reel format with 1500 units per package. The diode measures 3.3mm in height, 8.51mm in width, and 10.4mm in length.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the MCC SDB107-TP datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
MCC SDB107-TP technical specifications.
| Average Rectified Current | 1A |
| Package/Case | SMD/SMT |
| Height | 3.3mm |
| Lead Free | Lead Free |
| Length | 10.4mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1kV |
| Max Reverse Current | 10uA |
| Max Reverse Leakage Current | 10uA |
| Max Surge Current | 50A |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 50A |
| RoHS Compliant | Yes |
| Width | 8.51mm |
| RoHS | Compliant |
