Technical Specifications
MCC SK14-LTP technical specifications.
General
| Average Rectified Current | 1A |
| Forward Current | 1A |
| Height | 2.44mm |
| Lead Free | Lead Free |
| Length | 4.7mm |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 500uA |
| Max Reverse Voltage (DC) | 40V |
| Mount | Surface Mount |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reverse Voltage (DC) | 40V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Weight | 0.003386oz |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
MCC SK14-LTP Datasheet
Download the complete datasheet for MCC SK14-LTP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

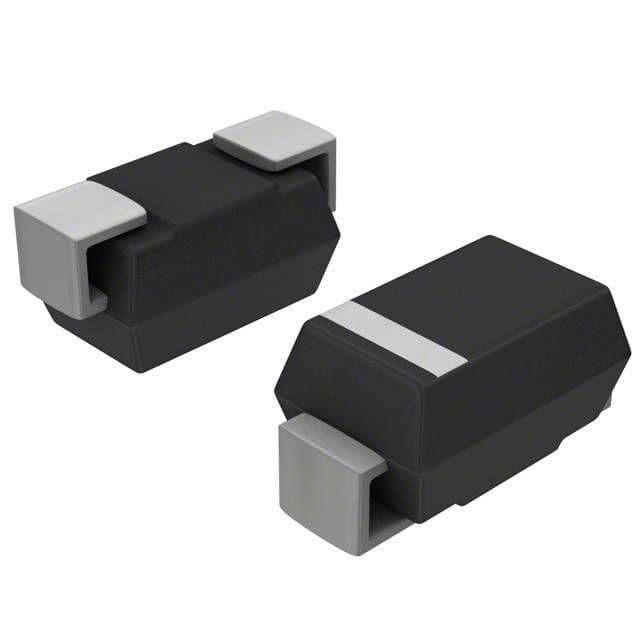

Product Images
