Schottky rectifier diode with 3A average rectified current and 40V repetitive reverse voltage. Features a 100A maximum surge current and 500µA maximum reverse leakage. Surface mountable in a DO-214AA package, this lead-free and RoHS compliant component operates from -55°C to 125°C.
PackageDO-214AA
Capacitance45pF
Current Rating3A
MountingSurface Mount
Quick Jump:
Technical Specifications
MCC SK34B-TP technical specifications.
General
| Average Rectified Current | 3A |
| Capacitance | 45pF |
| Package/Case | DO-214AA |
| Current Rating | 3A |
| Forward Current | 3A |
| Height | 2.44mm |
| Lead Free | Lead Free |
| Length | 4.57mm |
| Max Forward Surge Current (Ifsm) | 100A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 40V |
| Max Reverse Current | 20mA |
| Max Reverse Leakage Current | 500uA |
| Max Reverse Voltage (DC) | 40V |
| Max Surge Current | 100A |
| Mount | Surface Mount |
| Output Current | 3A |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 100A |
| Polarity | Standard |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 40V |
| Width | 3.94mm |
Compliance
| RoHS | Compliant |
Datasheet
MCC SK34B-TP Datasheet
Download the complete datasheet for MCC SK34B-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

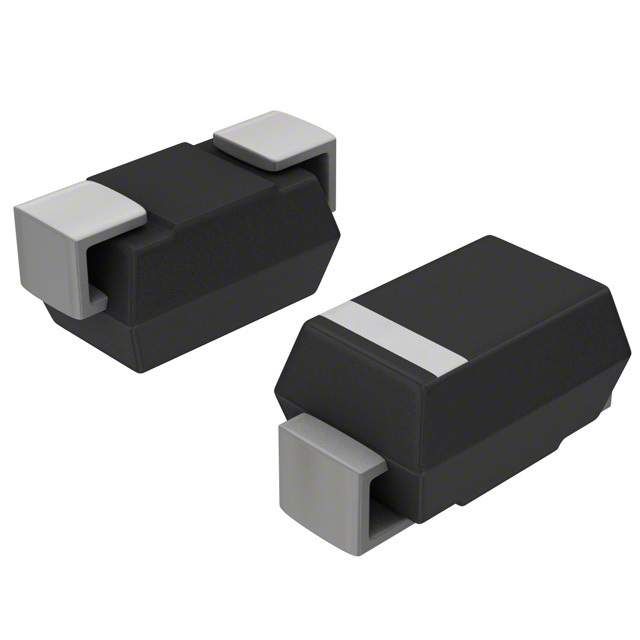

Product Images
