Bidirectional TVS Diode for surge suppression, featuring a 12V working voltage and 21V clamping voltage. This surface mount component offers 400W peak pulse power and 5A peak pulse current handling. With a low leakage current of 1µA and 45pF capacitance, it operates across a wide temperature range from -55°C to 150°C. Packaged in SOT-23, this RoHS compliant device provides two bidirectional channels.
PackageSOT-23
Capacitance45pF
Voltage Rating12V
Current Rating1uA
Quick Jump:
Technical Specifications
MCC SM712-TP technical specifications.
General
| Capacitance | 45pF |
| Package/Case | SOT-23 |
| Clamping Voltage | 21V |
| Current Rating | 1uA |
| Depth | 1.4mm |
| Diode Type | ZENER |
| Direction | Bidirectional |
| Lead Free | Lead Free |
| Leakage Current | 1uA |
| Length | 3.04mm |
| Min Breakdown Voltage | 13.3V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 400W |
| Mount | Surface Mount |
| Number of Bidirectional Channels | 2 |
| Number of Channels | 2 |
| Operating Supply Voltage | 12V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 5A |
| Peak Pulse Power | 400W |
| Power Line Protection | No |
| Radiation Hardening | No |
| Reverse Standoff Voltage | 12V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Working Voltage | 12V |
Compliance
| RoHS | Compliant |
Datasheet
MCC SM712-TP Datasheet
Download the complete datasheet for MCC SM712-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

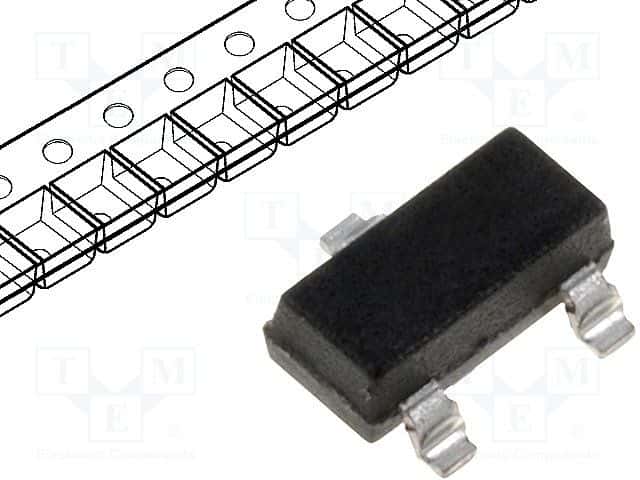

Product Images
