Technical Specifications
MCC SMA6J12A-TP technical specifications.
General
Package/Case
DO-214AC
Clamping Voltage
19.9V
Diode Type
ZENER
Leakage Current
5uA
Min Breakdown Voltage
13.3V
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Surge Current
70A
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Number of Unidirectional Channels
1
Operating Supply Voltage
12V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
30.2A
Peak Pulse Power
600W
Polarity
Unidirectional
Power Line Protection
No
Reverse Breakdown Voltage
13.3V
Reverse Standoff Voltage
12V
RoHS Compliant
Yes
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
MCC SMA6J12A-TP Datasheet
Download the complete datasheet for MCC SMA6J12A-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

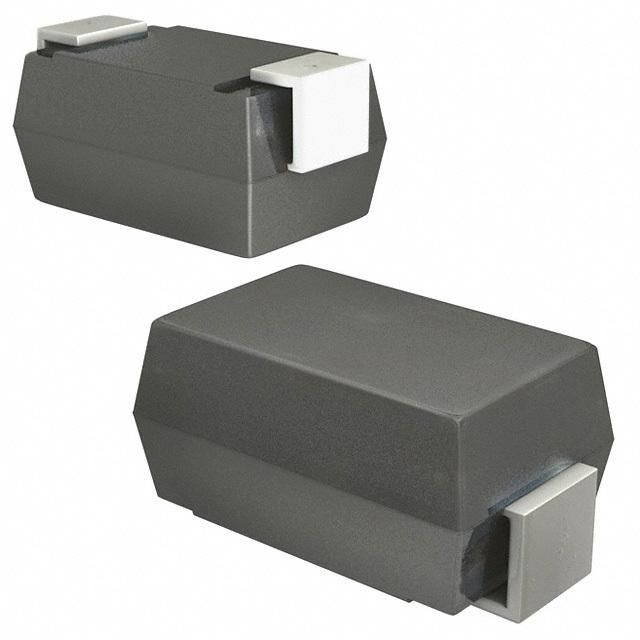

Product Images
