Bidirectional TVS diode for surge suppression, featuring a 16V DC rated voltage and 17.8V reverse breakdown voltage. This surface mount component, housed in a DO-214AA package, offers a 26V clamping voltage and 600W peak pulse power handling with a 23.1A peak pulse current. Operating across a -55°C to 150°C temperature range, it exhibits a low 5uA leakage current and is RoHS compliant.
PackageDO-214AA
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
MCC SMBJ16CA-TP technical specifications.
General
Package/Case
DO-214AA
Clamping Voltage
26V
Diode Type
ZENER
Height
2.44mm
Lead Free
Lead Free
Leakage Current
5uA
Length
4.7mm
Max Breakdown Voltage
19.7V
Min Breakdown Voltage
17.8V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Surge Current
23.1A
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
16V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
23.1A
Peak Pulse Power
600W
Polarity
Bidirectional
Power Line Protection
No
Reach SVHC Compliant
Unknown
Reverse Breakdown Voltage
17.8V
Reverse Standoff Voltage
16V
RoHS Compliant
Yes
Termination
SMD/SMT
DC Rated Voltage
16V
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
MCC SMBJ16CA-TP Datasheet
Download the complete datasheet for MCC SMBJ16CA-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

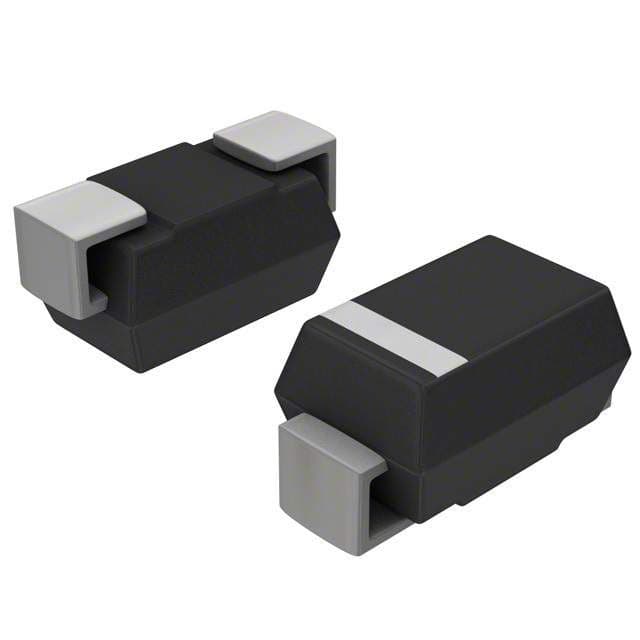

Product Images
