Bi-directional TVS Diode, DO-214AA package, offering 600W peak pulse power and 15.4A peak pulse current. Features a 24V DC rated voltage with a reverse standoff voltage of 24V and a minimum breakdown voltage of 26.7V. Clamping voltage is 38.9V, with a low leakage current of 5uA. Designed for surface mount applications, this RoHS compliant component operates from -55°C to 150°C.
PackageDO-214AA
MountingSurface Mount
PolarityBidirectional
Quick Jump:
Technical Specifications
MCC SMBJ24CA-TP technical specifications.
General
Package/Case
DO-214AA
Clamping Voltage
38.9V
Diode Type
ZENER
Height
2.44mm
Lead Free
Lead Free
Leakage Current
5uA
Length
4.7mm
Max Breakdown Voltage
29.5V
Min Breakdown Voltage
26.7V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Surge Current
15.4A
Mount
Surface Mount
Number of Bidirectional Channels
1
Number of Channels
1
Number of Elements
1
Operating Supply Voltage
24V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Current
15.4A
Peak Pulse Power
600W
Polarity
Bidirectional
Power Line Protection
No
Reach SVHC Compliant
Unknown
Reverse Breakdown Voltage
26.7V
Reverse Standoff Voltage
24V
RoHS Compliant
Yes
Termination
SMD/SMT
DC Rated Voltage
24V
Width
3.94mm
Compliance
RoHS
Compliant
Datasheet
MCC SMBJ24CA-TP Datasheet
Download the complete datasheet for MCC SMBJ24CA-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

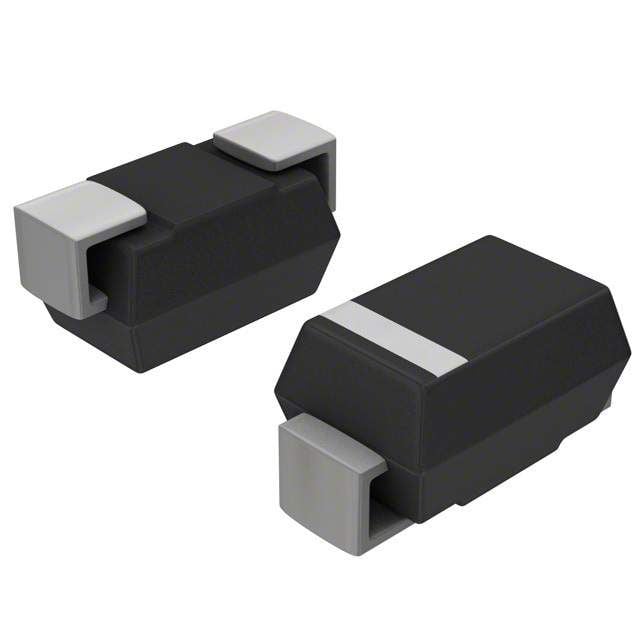

Product Images
