The US1ME-TP is a surface mount general purpose rectifier with a maximum repetitive reverse voltage of 1kV and average rectified current of 1A. It is lead free and RoHS compliant. The device has a reverse recovery time of 75ns and is packaged in tape and reel for surface mount applications.
MountingSurface Mount
Quick Jump:
Technical Specifications
MCC US1ME-TP technical specifications.
General
| Average Rectified Current | 1A |
| Lead Free | Lead Free |
| Max Repetitive Reverse Voltage (Vrrm) | 1kV |
| Max Reverse Current | 10uA |
| Max Reverse Voltage (DC) | 1kV |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reverse Recovery Time | 75ns |
| Reverse Recovery Time-Max | 75ns |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
MCC US1ME-TP Datasheet
Download the complete datasheet for MCC US1ME-TP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

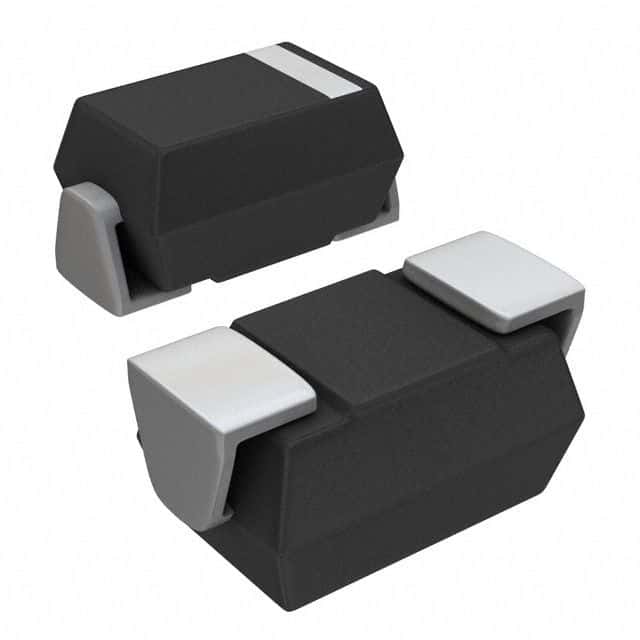

Product Images
