Board mount DC/DC converter featuring a 153W maximum output power with a single 12V output at 12.5A. This AC-DC power factor correction module offers dual outputs with 12V at 11.5A and 5V at 3A, achieving 77% efficiency. Designed for panel or desktop mounting, it operates within a -10°C to 60°C temperature range and boasts UL, TUV, and EN approvals. Dimensions are 7.8 inches in length, 4.3 inches in width, and 2 inches in height, with a maximum input current of 2.5A and RoHS compliance.
MountingPanel, Desktop
Power153W
Quick Jump:
Technical Specifications
Mean Well ADS-15512 technical specifications.
General
| Approvals | UL, TUV, EN |
| Current - Output 1 | 11.5A |
| Current - Output 2 | 3A |
| Efficiency | 77% |
| Height | 2inch |
| Length | 7.8inch |
| Max Input Current | 2.5A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Max Output Power | 153W |
| Mount | Panel, Desktop |
| Number of Outputs | 1 |
| Output Current | 12.5A |
| Output Power | 153W |
| RoHS Compliant | Yes |
| Series | ADS-155 |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | 5V |
| Width | 4.3inch |
Compliance
| RoHS | Compliant |
Datasheet
Mean Well ADS-15512 Datasheet
Download the complete datasheet for Mean Well ADS-15512 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

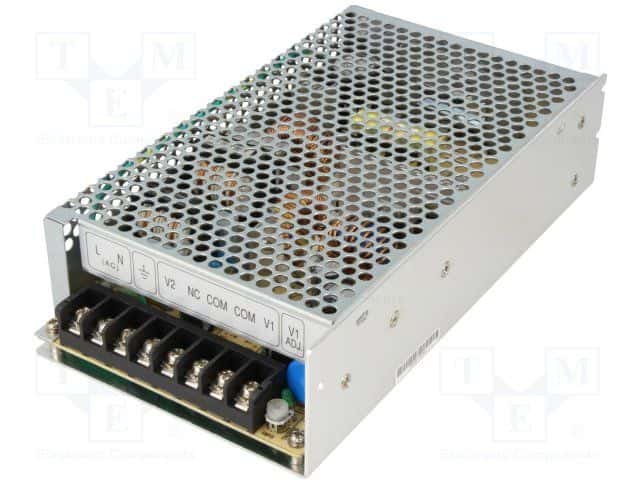

Product Images
