6W, 5V, 1.2A AC/DC wall adapter with single output. Features fixed output type, positive polarity, and 68% efficiency. Operates from 0°C to 40°C with a maximum input current of 180mA. Approvals include UL and CB.
MountingWall, Plug-In
PolarityPositive
Power6W
Quick Jump:
Technical Specifications
Mean Well GSM06U05-P1J technical specifications.
General
Approvals
UL, CB
Color
Black
Current - Output 1
1.2A
Efficiency
68%
Height
1.7inch
Lead Free
Lead Free
Length
1.3inch
Max Input Current
180mA
Max Operating Temperature
40°C
Min Operating Temperature
0°C
Max Output Current
1.2A
Max Output Power
6W
Mount
Wall, Plug-In
Number of Outputs
1
Output Current
1.2A
Output Power
6W
Output Type
Fixed
Output Voltage
5V
Package Quantity
110
Packaging
Bulk
Polarity
Positive
Series
GSM06U
Voltage - Output 1
5V
Width
2.6inch
Compliance
RoHS
Compliant
Datasheet
Mean Well GSM06U05-P1J Datasheet
Download the complete datasheet for Mean Well GSM06U05-P1J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

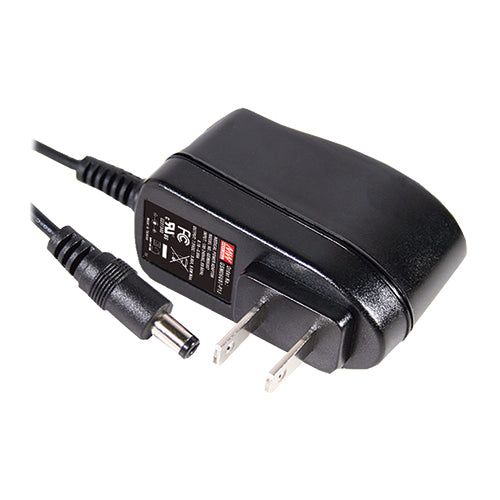

Product Images
