Single-output AC/DC plug-in adapter delivering 60W maximum output power. Features a 24V output voltage with a 2.5A maximum output current. Operates with 90% efficiency and a wide temperature range from -30°C to 60°C. Designed for desktop mounting, this universal regulator offers a positive polarity output.
Package100
MountingDesktop
PolarityPositive
Power60W
Quick Jump:
Technical Specifications
Mean Well GSM60A24-P1J technical specifications.
General
Package/Case
100
Current - Output 1
2.5A
Efficiency
90%
Height
1.2inch
Length
4.9inch
Max Input Current
1.4A
Max Operating Temperature
60°C
Min Operating Temperature
-30°C
Max Output Current
2.5A
Max Output Power
60W
Mount
Desktop
Number of Outputs
1
Output Current
2.5A
Output Power
60W
Output Type
Fixed
Output Voltage
24V
Overall Depth
31.5mm
Package Quantity
40
Packaging
Bulk
Polarity
Positive
Regulator Type
UNIVERSAL
Voltage - Output 1
24V
Weight
11.287668oz
Width
2inch
Compliance
RoHS
Compliant
Datasheet
Mean Well GSM60A24-P1J Datasheet
Download the complete datasheet for Mean Well GSM60A24-P1J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

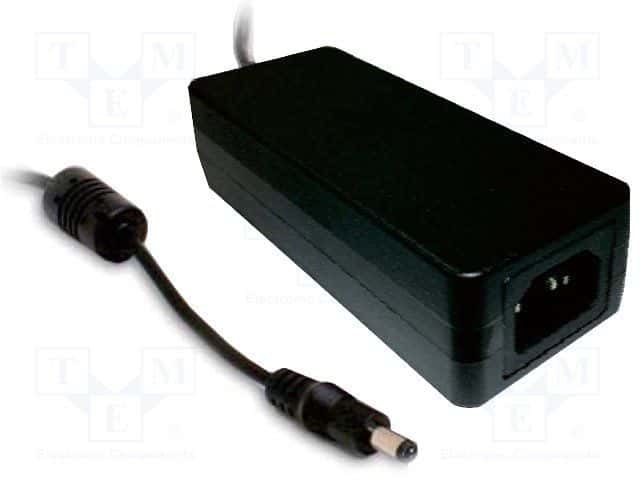

Product Images
