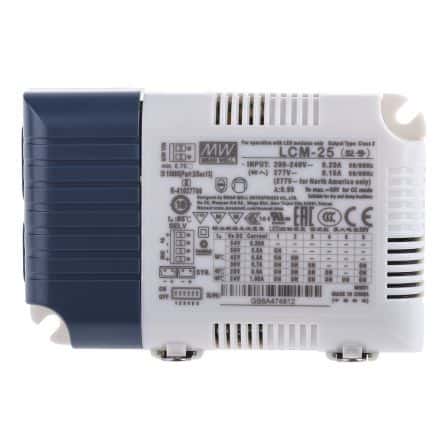

AC/DC LED Power Supply, 25.2W, constant current and constant voltage operation. Features six outputs with a maximum output voltage of 54V and a maximum output current of 1.05A. Offers high efficiency of 92% and a wide operating temperature range from -30°C to 60°C. Approvals include UL and CB, with IP20 rating and RoHS compliance. Dimensions are 105mm length, 68mm width, and 23mm height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Mean Well LCM-25 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Mean Well LCM-25 technical specifications.
| Approvals | UL, CB |
| Package/Case | 200 |
| Current - Output 1 | 350mA |
| Current - Output 2 | 1.05A |
| Efficiency | 92% |
| Height | 23mm |
| Length | 105mm |
| Max Input Current | 170mA |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -30°C |
| Max Output Power | 25W |
| Number of Outputs | 6 |
| Output Current | 1.05A |
| Output Power | 25.2W |
| Output Voltage | 54V |
| Package Quantity | 72 |
| Packaging | Bulk |
| Ratings | IP20 |
| RoHS Compliant | Yes |
| Series | LCM-25 |
| Voltage - Output 1 | 54V |
| Voltage - Output 2 | 24V |
| Voltage Rating | 392V |
| Weight | 5.643834oz |
| Width | 68mm |
| RoHS | Compliant |
