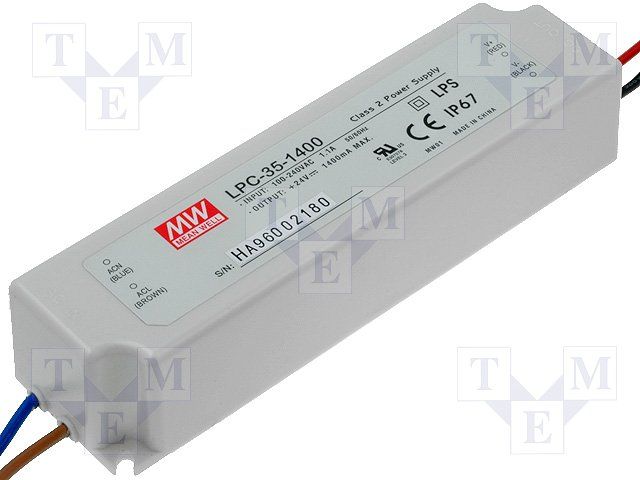

AC/DC LED Power Supply, 33.6W, single output, 1.4A constant current. Features 90-264V AC input, 9-24V DC output voltage range, and 85% efficiency. Operates from -30°C to 75°C with IP67 rating. Panel mount design with screw terminals. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Mean Well LPC-35-1400 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Mean Well LPC-35-1400 technical specifications.
| Current - Output 1 | 1.4A |
| Current Rating | 1.4A |
| Depth | 30mm |
| Efficiency | 85% |
| Height | 0.88inch |
| Lead Free | Lead Free |
| Length | 148mm |
| Max Input Current | 1.1A |
| Max Input Voltage | 264V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 1.4A |
| Max Output Power | 33.6W |
| Max Output Voltage | 24V |
| Min Output Voltage | 9V |
| Mount | Panel, Screw |
| Nominal Output Voltage | 24V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 1.4A |
| Output Power | 33.6W |
| Output Voltage | 24V |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | LPC-35 |
| Voltage - Output 1 | 24V |
| Width | 40mm |
| RoHS | Compliant |
