Package100
MountingPanel, Desktop
Power16.2W
Quick Jump:
Technical Specifications
Mean Well LPF-16D-36 technical specifications.
General
Approvals
UL, CSA, TUV, EN
Package/Case
100
Current - Output 1
450mA
Efficiency
86%
Height
1.3inch
Input Current
200mA
Lead Free
Lead Free
Length
5.8inch
Max Input Current
400mA
Max Operating Temperature
70°C
Min Operating Temperature
-35°C
Max Output Power
16.2W
Mount
Panel, Desktop
Number of Outputs
1
Output Current
450mA
Output Power
16.2W
Output Voltage
36V
RoHS Compliant
Yes
Series
LPF-16D
Voltage - Output 1
36V
Weight
7.407532oz
Width
1.6inch
Compliance
RoHS
Compliant
Datasheet
Mean Well LPF-16D-36 Datasheet
Download the complete datasheet for Mean Well LPF-16D-36 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

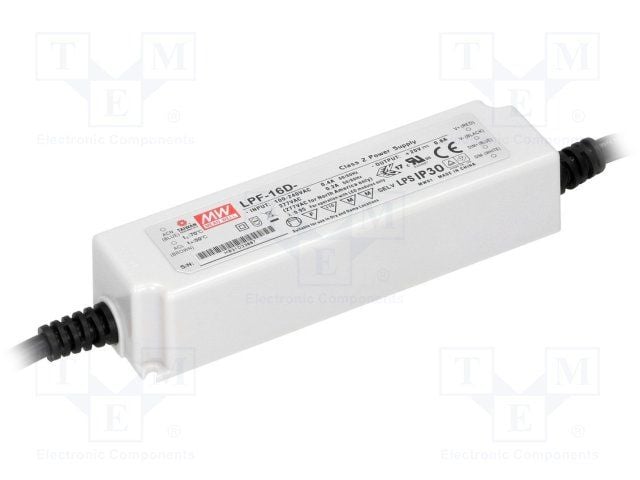

Product Images
