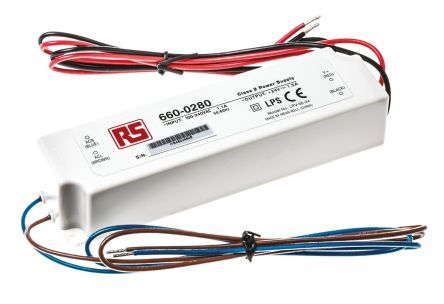

36W AC/DC LED power supply, constant voltage output of 24V with a 1.5A current rating. Features 90-264V AC input, 85% efficiency, and a wide operating temperature range of -30°C to 65°C. This single-channel, IP67 rated unit offers panel or screw mounting and cable termination.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Mean Well LPV-35-24 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Mean Well LPV-35-24 technical specifications.
| Current - Output 1 | 1.5A |
| Current Rating | 1.5A |
| Depth | 40mm |
| Efficiency | 85% |
| Height | 30mm |
| Lead Free | Lead Free |
| Length | 148mm |
| Max Input Current | 1.1A |
| Max Input Voltage | 264V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 65°C |
| Min Operating Temperature | -30°C |
| Max Output Power | 36W |
| Max Output Voltage | 24V |
| Mount | Panel, Screw |
| Nominal Output Voltage | 24V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 1.5A |
| Output Power | 36W |
| Output Voltage | 24V |
| Radiation Hardening | No |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | LPV-35 |
| Termination | Cable |
| Voltage - Output 1 | 24V |
| Width | 40mm |
| RoHS | Compliant |
