Board mount AC-DC regulated power supply module delivering 350W maximum output power. Features a single 5V output with 60A current capability. Operates efficiently at 83.5% with an isolation voltage of 3kV. Designed for panel mounting, this lead-free and RoHS compliant module has a wide operating temperature range of -25°C to 70°C. Approvals include UL.
MountingPanel
Power300W
Quick Jump:
Technical Specifications
Mean Well LRS-350-5 technical specifications.
General
| Approvals | UL |
| Color | Silver |
| Current - Output 1 | 60A |
| Efficiency | 83.5% |
| Height | 30mm |
| Isolation Voltage | 3kV |
| Lead Free | Lead Free |
| Length | 215mm |
| Max Input Current | 6.8A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -25°C |
| Max Output Power | 350W |
| Mount | Panel |
| Number of Outputs | 1 |
| Output Current | 60A |
| Output Power | 300W |
| Package Quantity | 15 |
| Packaging | Bulk |
| RoHS Compliant | Yes |
| Series | LRS-350 |
| Voltage - Output 1 | 5V |
| Weight | 1.676lb |
| Width | 115mm |
Compliance
| RoHS | Compliant |
Datasheet
Mean Well LRS-350-5 Datasheet
Download the complete datasheet for Mean Well LRS-350-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

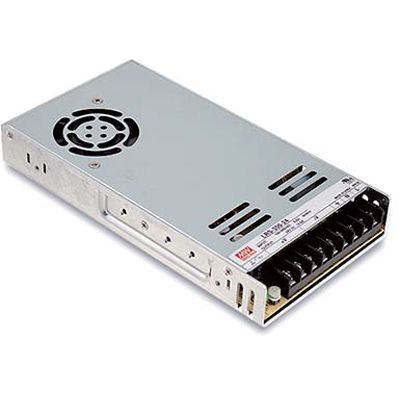

Product Images
