Technical Specifications
Mean Well NFM-20-24 technical specifications.
General
| Approvals | UL, IEC, EN |
| Current - Output 1 | 920mA |
| Depth | 50.8mm |
| Efficiency | 84% |
| Height | 19.3mm |
| Lead Free | Lead Free |
| Length | 89mm |
| Max Current Rating | 600mA |
| Max Input Current | 600mA |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -20°C |
| Max Output Power | 22.08W |
| Mount | Panel, Screw |
| Number of Outputs | 1 |
| Output Current | 920mA |
| Output Power | 22.08W |
| Output Voltage | 24V |
| Package Quantity | 105 |
| RoHS Compliant | Yes |
| Series | NFM-20 |
| Voltage - Output 1 | 24V |
| Weight | 0.09kg |
| Width | 51mm |
Compliance
| RoHS | Compliant |
Datasheet
Mean Well NFM-20-24 Datasheet
Download the complete datasheet for Mean Well NFM-20-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

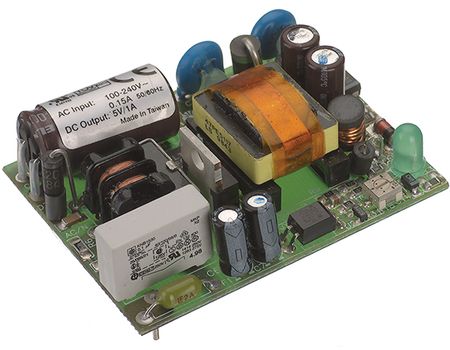

Product Images
