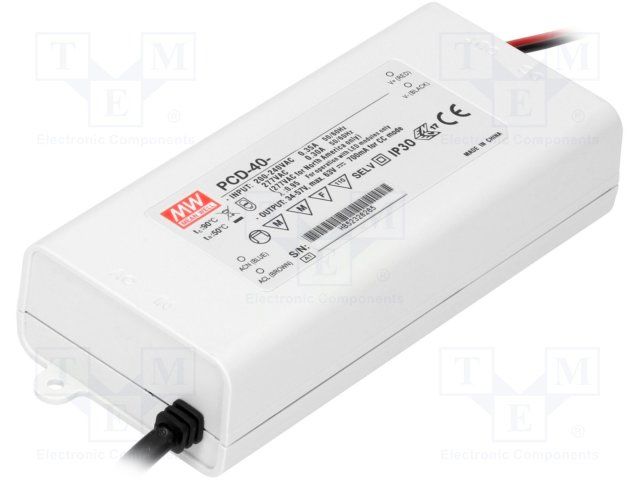

Enclosed AC/DC power supply delivering 39.9W maximum output power. Features constant current (CC) operation with 1.05A output current and a 38V output voltage. Designed for LED driving with dimmable functionality. Offers 86% efficiency and operates across a wide temperature range from -30°C to 50°C. IP30 rated and RoHS compliant, with screw mounting for chassis installation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Mean Well PCD-40-1050B datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | EN |
| Color | White |
| Current - Output 1 | 1.05A |
| Depth | 60mm |
| Efficiency | 86% |
| Height | 31.5mm |
| Lead Free | Lead Free |
| Length | 128mm |
| Max Input Current | 350mA |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -30°C |
| Max Output Power | 39.9W |
| Mount | Screw |
| Number of Outputs | 1 |
| Output Current | 1.05A |
| Output Power | 39.9W |
| Output Voltage | 38V |
| Package Quantity | 30 |
| Packaging | Bulk |
| Ratings | IP30 |
| RoHS Compliant | Yes |
| Series | PCD-40 |
| Voltage - Output 1 | 38V |
| Voltage Rating | 295V |
| Weight | 230g |
| Width | 60mm |
| RoHS | Compliant |
