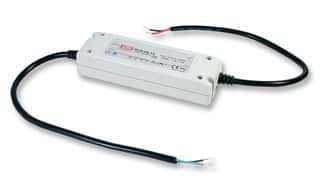

60W AC/DC LED Power Supply, Constant Current & Constant Voltage, featuring 5A maximum output current and 12V nominal output voltage. This single-channel power supply operates with an efficiency of 85% and boasts a wide input voltage range of 90-295V AC. Designed for panel or screw mounting, it offers IP64 protection and operates across a temperature range of -30°C to 50°C. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Mean Well PLN-60-12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Mean Well PLN-60-12 technical specifications.
| Current - Output 1 | 5A |
| Depth | 61.5mm |
| Efficiency | 85% |
| Height | 35mm |
| Lead Free | Lead Free |
| Length | 181mm |
| Max Input Current | 800mA |
| Max Input Voltage | 295V |
| Min Input Voltage | 90V |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 5A |
| Max Output Power | 60W |
| Max Output Voltage | 12V |
| Mount | Panel, Screw |
| Nominal Output Voltage | 12V |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current | 5A |
| Output Power | 60W |
| Output Voltage | 12V |
| Radiation Hardening | No |
| Ratings | IP64 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | PLN-60 |
| Voltage - Output 1 | 12V |
| Width | 61.5mm |
| RoHS | Compliant |
