Technical Specifications
Mean Well PLN-60-20 technical specifications.
General
| Current - Output 1 | 3A |
| Efficiency | 87.5% |
| Height | 1.37inch |
| Lead Free | Lead Free |
| Length | 7.12inch |
| Max Input Current | 800mA |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -30°C |
| Max Output Power | 60W |
| Mount | Panel, Screw |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Power | 60W |
| Output Voltage | 20V |
| Ratings | IP64 |
| RoHS Compliant | Yes |
| Series | PLN-60 |
| Voltage - Output 1 | 20V |
| Width | 2.42inch |
Compliance
| RoHS | Compliant |
Datasheet
Mean Well PLN-60-20 Datasheet
Download the complete datasheet for Mean Well PLN-60-20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

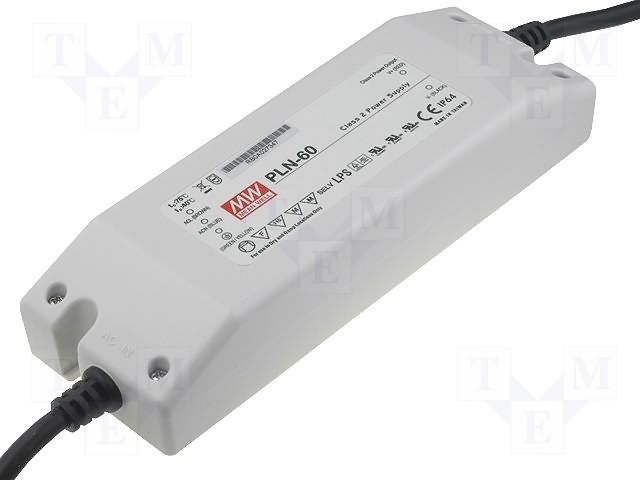

Product Images
