Technical Specifications
Mean Well PS-05-15 technical specifications.
General
| Approvals | TUV, CB, EN |
| Current - Output 1 | 350mA |
| Efficiency | 75% |
| Height | 20mm |
| Length | 75mm |
| Max Input Current | 150mA |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Max Output Power | 5.25W |
| Mount | Screw |
| Number of Outputs | 1 |
| Output Current | 400mA |
| Package Quantity | 120 |
| RoHS Compliant | Yes |
| Series | PS-05 |
| Voltage - Output 1 | 15V |
| Width | 40mm |
Compliance
| RoHS | Compliant |
Datasheet
Mean Well PS-05-15 Datasheet
Download the complete datasheet for Mean Well PS-05-15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

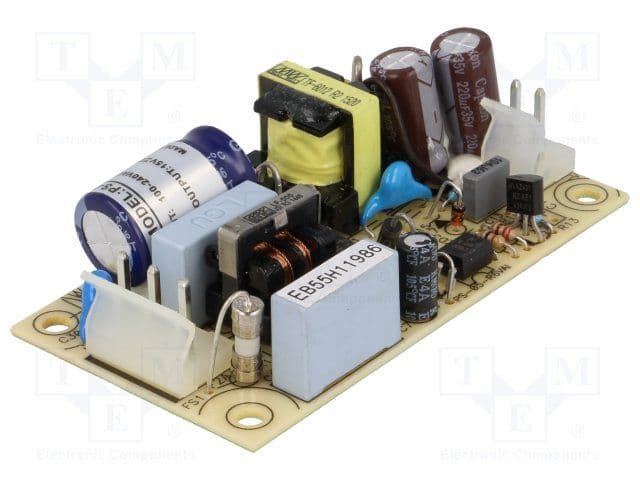

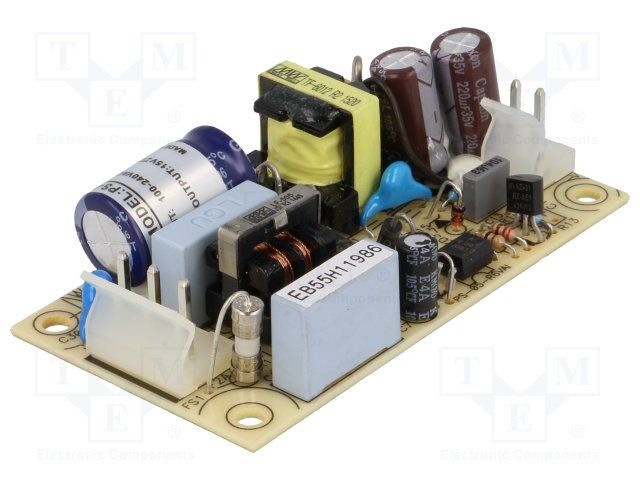

Product Images
