Technical Specifications
Mean Well PSD-30A-24 technical specifications.
General
Current - Output 1
1.25A
Depth
30mm
Efficiency
78%
Height
1.2inch
Isolation Voltage
1.5kV
Length
101.6mm
Max Input Current
4.5A
Max Operating Temperature
55°C
Min Operating Temperature
-20°C
Max Output Power
30W
Mount
Chassis Mount, Screw
Nominal Input Voltage
12V
Number of Outputs
1
Output Current
1.25A
Output Power
30W
Output Voltage
24V
RoHS Compliant
Yes
Series
PSD 30
Voltage - Output 1
24V
Width
50.8mm
Compliance
RoHS
Compliant
Datasheet
Mean Well PSD-30A-24 Datasheet
Download the complete datasheet for Mean Well PSD-30A-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

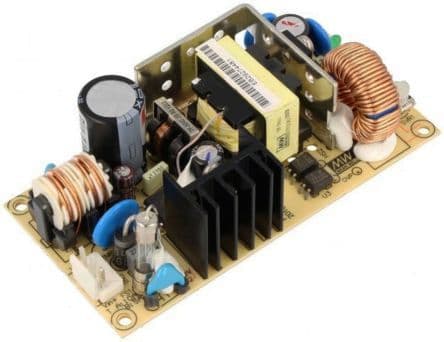

Product Images
