Technical Specifications
Mean Well PT-6503 technical specifications.
General
| Approvals | UL, TUV, EN |
| Current - Output 1 | 6A |
| Current - Output 2 | 6A |
| Current - Output 3 | 1A |
| Depth | 76mm |
| Efficiency | 72% |
| Height | 1.1inch |
| Length | 5inch |
| Max Input Current | 1.8A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Max Output Power | 61.8W |
| Mount | Screw |
| Number of Outputs | 3 |
| Output Current | 6A |
| Output Power | 61.8W |
| Package Quantity | 54 |
| RoHS Compliant | Yes |
| Series | PT-6503 |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | 5V |
| Voltage - Output 3 | 12V |
| Width | 3inch |
Compliance
| RoHS | Not Compliant |
Datasheet
Mean Well PT-6503 Datasheet
Download the complete datasheet for Mean Well PT-6503 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

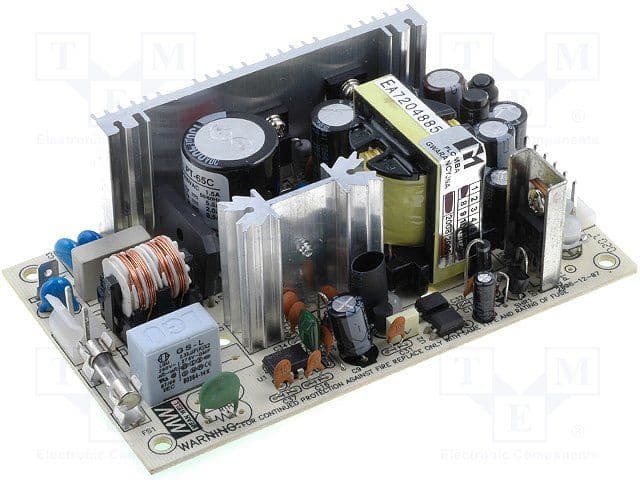

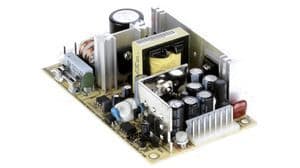

Product Images
