Isolated DC-DC regulated power supply module, 100.8W max output power, 24V output voltage, and 4.2A output current. Features a wide input voltage range of 19V to 36V DC, with a nominal input of 24V DC. Operates efficiently at 78% with an isolation voltage of 1.5kV. This hybrid module is designed for desktop or panel mounting, with dimensions of 199mm (L) x 98mm (W) x 38mm (H) and a weight of 600g. It is lead-free and RoHS compliant, suitable for operation between -10°C and 60°C.
MountingDesktop, Panel
Power100.8W
Quick Jump:
Technical Specifications
Mean Well SD-100B-24 technical specifications.
General
Current - Output 1
4.2A
Depth
98mm
Efficiency
78%
Height
38mm
Isolation
Isolated
Isolation Voltage
1.5kV
Lead Free
Lead Free
Length
199mm
Max Input Voltage (DC)
36V
Min Input Voltage (DC)
19V
Max Operating Temperature
60°C
Min Operating Temperature
-10°C
Max Output Power
100.8W
Mount
Desktop, Panel
Nominal Input Voltage
24V
Number of Outputs
1
Output Current
4.2A
Output Power
100.8W
Output Voltage
24V
Package Quantity
50
RoHS Compliant
Yes
Series
SD-100
Voltage - Output 1
24V
Weight
600g
Width
98mm
Compliance
RoHS
Compliant
Datasheet
Mean Well SD-100B-24 Datasheet
Download the complete datasheet for Mean Well SD-100B-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

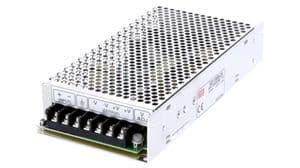

Product Images
