The Mean Well SD-50B-5 is a DC/DC controller regulator with a nominal input voltage of 24V and a maximum output power of 50W. It features a high efficiency of 76% and a maximum operating temperature of 60°C. The device is RoHS compliant and is available in a package quantity of 50. It is designed for desktop and chassis mount applications and has a maximum output current of 10A.
MountingDesktop, Chassis
Power50W
Quick Jump:
Technical Specifications
Mean Well SD-50B-5 technical specifications.
General
| Current - Output 1 | 10A |
| Efficiency | 76% |
| Height | 37mm |
| Isolation Voltage | 1.5kV |
| Length | 159mm |
| Max Input Voltage (DC) | 36V |
| Min Input Voltage (DC) | 19V |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -10°C |
| Max Output Power | 50W |
| Mount | Desktop, Chassis |
| Nominal Input Voltage | 24V |
| Number of Outputs | 1 |
| Output Current | 10A |
| Output Power | 50W |
| Output Voltage | 5V |
| Package Quantity | 50 |
| RoHS Compliant | Yes |
| Series | SD-50 |
| Voltage - Output 1 | 5V |
| Weight | 487.5g |
| Width | 97mm |
Compliance
| RoHS | Compliant |
Datasheet
Mean Well SD-50B-5 Datasheet
Download the complete datasheet for Mean Well SD-50B-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

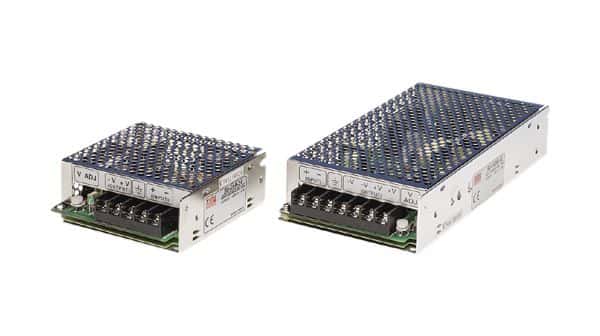

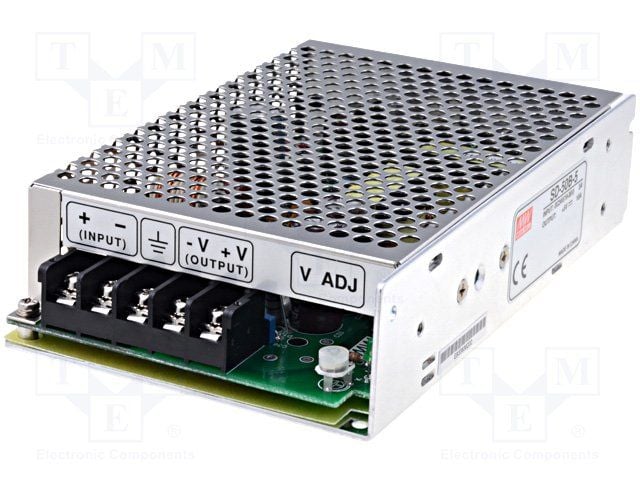

Product Images
