Technical Specifications
MEC Switches 5GTH93542 technical specifications.
General
| Actuator Material | Polyphenylene |
| Contact Current Rating | 50mA |
| Contact Material | Silver |
| Current Rating | 50mA |
| Illumination Type | Illuminated, LED |
| Material | Plastic |
| Max Operating Temperature | 160°C |
| Mechanical Life | 10000000Cycles |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Operating Force | 350gf |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Ratings | IP67, Waterproof, Dust Tight |
| Reach SVHC Compliant | Yes |
| Series | Multimec® 5 |
| Switch Function | Off-Mom |
| Switch Travel | 1mm |
| Termination | PC Pin |
| Throw Configuration | SPST |
Compliance
| RoHS | Compliant |
Datasheet
MEC Switches 5GTH93542 Datasheet
Download the complete datasheet for MEC Switches 5GTH93542 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

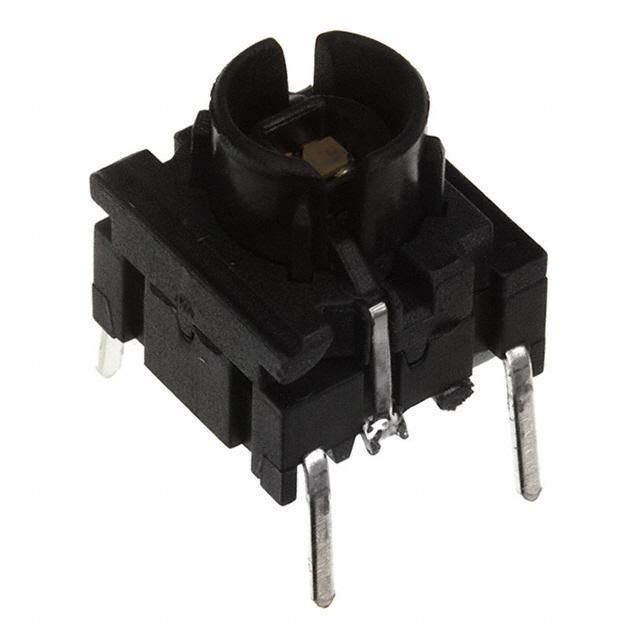

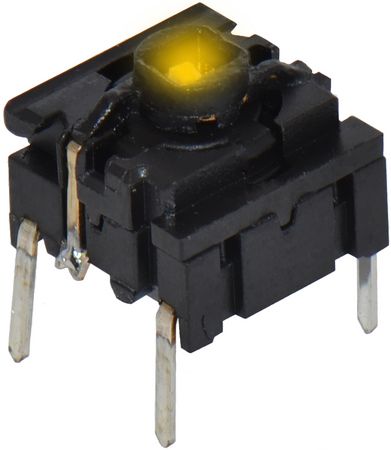

Product Images
