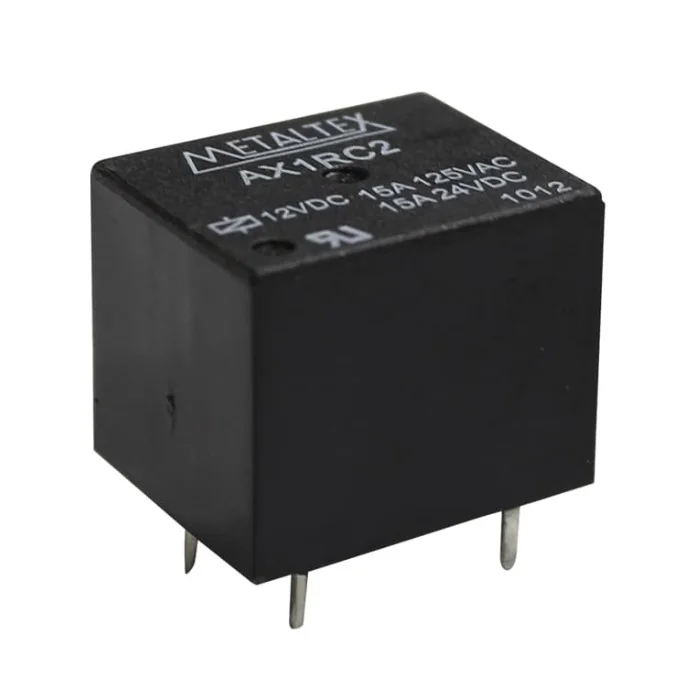

Metaltex AT1RC2 Miniature Relay - 15A - 12VDC. Miniature sealed electromagnetic power relay with 1 reversible contact, 15A capacity. Coil voltage 12VDC. IC terminals. Board solder.
MountingThrough Hole
Quick Jump:
Technical Specifications
Metaltex AT1RC2 technical specifications.
General
Type
Miniature Relay
Contact Arrangement
SPDT
Max Current Rating
15A
Termination Style
PC Pin
Number of Terminals
5
DC Coil Voltage
12V
Maximum Pick-Up Voltage
9VDC
Coil Current
30mA
Maximum AC Switching Voltage
240V
Coil Resistance
400Ohm
Maximum DC Switching Voltage
110V
Mounting
Through Hole
Min Operating Temperature
-40°C
Max Operating Temperature
85°C
Compliance
RoHS Version
2002/95/EC
Datasheet
Metaltex AT1RC2 Datasheet
Download the complete datasheet for Metaltex AT1RC2 to view detailed technical specifications.
