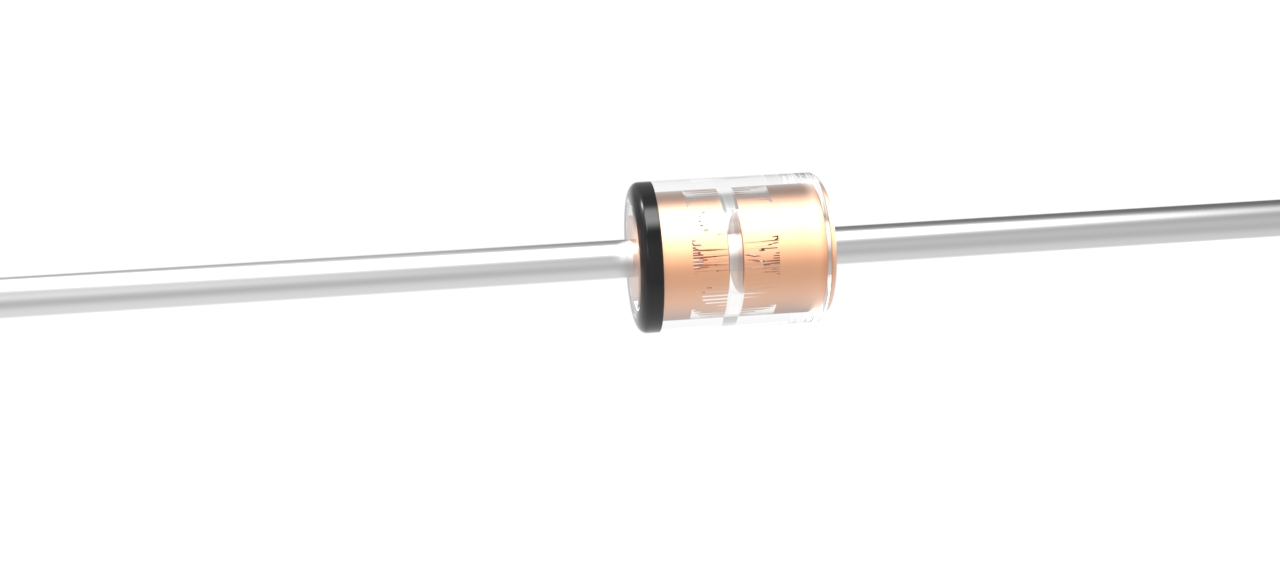

The 1N4742A is a silicon zener diode with a maximum operating temperature of 200°C and a maximum power dissipation of 1W. It features an axial lead configuration and a unidirectional polarity. This diode is packaged in a hermetic, glass DO-41G package with two pins. The 1N4742A is suitable for use in a variety of applications, including voltage regulation and protection circuits.
Sign in to ask questions about the Micro Commercial Components 1N4742A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Micro Commercial Components 1N4742A technical specifications.
| Max Operating Temperature | 200 |
| Number of Terminals | 2 |
| Min Operating Temperature | -65 |
| Terminal Position | AXIAL |
| JEDEC Package Code | DO-41 |
| Pin Count | 2 |
| Number of Elements | 1 |
| Polarity | UNIDIRECTIONAL |
| Diode Element Material | SILICON |
| Diode Type | ZENER DIODE |
| Power Dissipation-Max | 1 |
| RoHS | No |
| Eccn Code | EAR99 |
| Lead Free | No |
| HTS Code | 8541.10.00.50 |
| REACH | not_compliant |
| Military Spec | False |
Download the complete datasheet for Micro Commercial Components 1N4742A to view detailed technical specifications.
