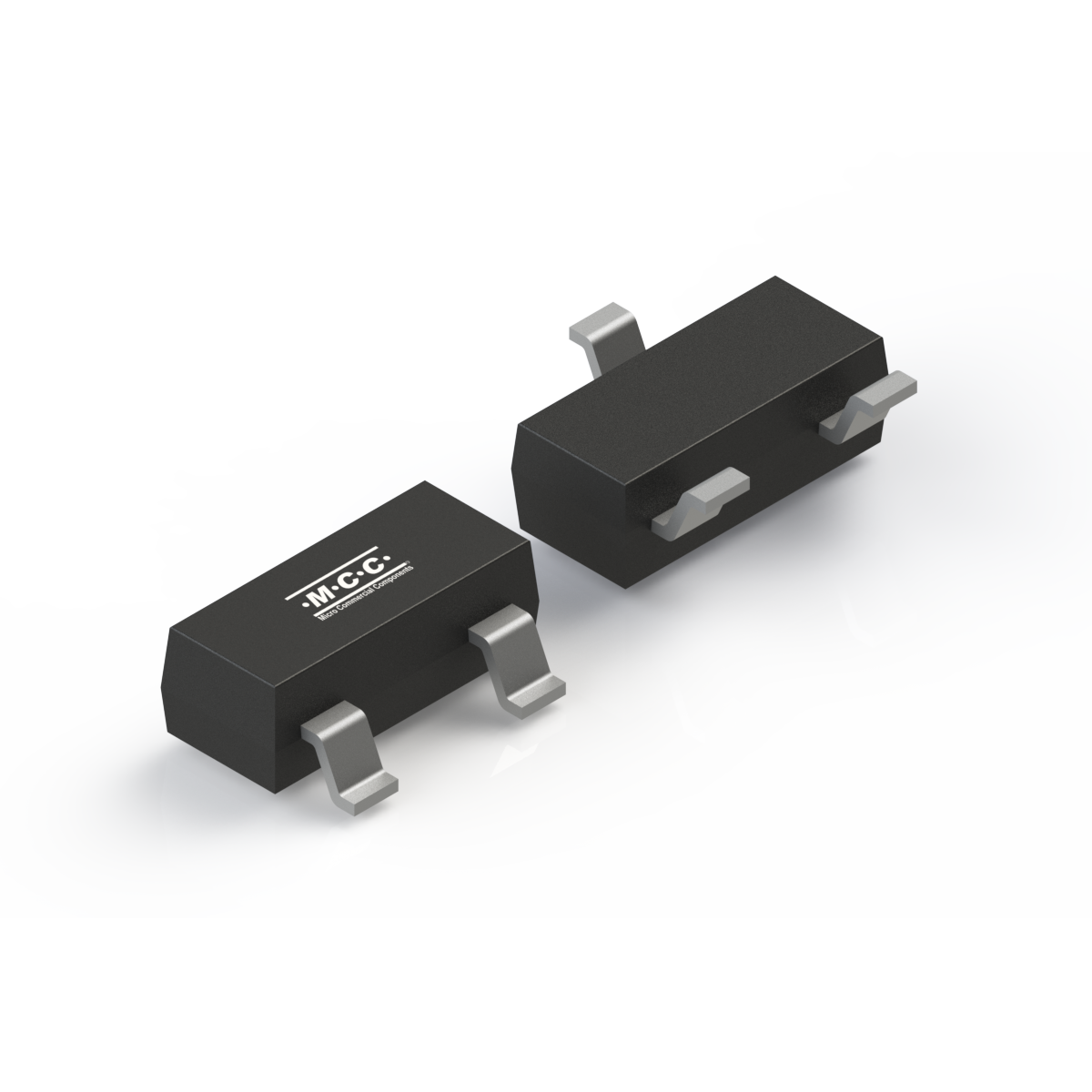

This device is an NPN general-purpose amplifier transistor in a surface-mount SOT-23 package. It supports 40 V collector-emitter breakdown voltage, 75 V collector-base breakdown voltage, 6.0 V emitter-base breakdown voltage, and 600 mA collector current. The part is rated for 350 mW power dissipation and provides current gain values from 75 minimum at 10 mA to 300 maximum in the specified test conditions. Small-signal performance includes a 300 MHz transition frequency, 8.0 pF output capacitance, 25 pF input capacitance, and 4.0 dB noise figure. Switching characteristics include 10 ns delay time, 25 ns rise time, 225 ns storage time, and 60 ns fall time under the stated test conditions.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Micro Commercial Components MMBT2222A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Micro Commercial Components MMBT2222A technical specifications.
| Number of Terminals | 3 |
| Terminal Position | DUAL |
| Pin Count | 3 |
| Number of Elements | 1 |
| RoHS | No |
| Eccn Code | EAR99 |
| REACH | Compliant |
| Military Spec | False |
Download the complete datasheet for Micro Commercial Components MMBT2222A to view detailed technical specifications.
