2Kb serial EEPROM memory, organized as 256 x 8 bits, featuring a 1-wire interface. This non-volatile memory component operates with a maximum frequency of 100kHz and supports a supply voltage range of 1.8V to 5.5V. Encased in a compact SOT-23 surface mount package with tin matte contact plating, it offers write protection and operates within a temperature range of -40°C to 85°C. The component is RoHS compliant and supplied on tape and reel.
Frequency100kHz
PackageSOT-23
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 11AA020T-I/TT technical specifications.
General
| Package/Case | SOT-23 |
| Contact Plating | Tin, Matte |
| Density | 2Kb |
| Frequency | 100kHz |
| Height | 0.95mm |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Frequency | 100kHz |
| Max Operating Temperature | 85°C |
| Memory Size | 2Kb |
| Memory Type | Non-Volatile, , EEPROM |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Organization | 256X8 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Termination | SMD/SMT |
| Width | 1.3mm |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 11AA020T-I/TT Datasheet
Download the complete datasheet for Microchip 11AA020T-I/TT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

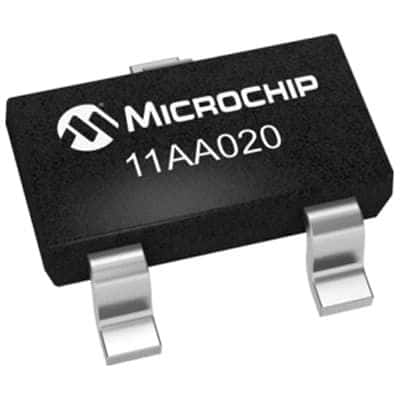

Product Images
