Microchip

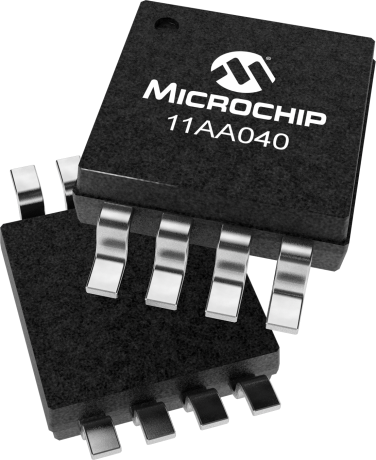

11AA040T-I/MS
512 X 8 1-WIRE SERIAL EEPROM, PDSO8, 0.150 INCH, ROHS COMPLIANT, PLASTIC, MSOP-8
Frequency100kHz
PackageMSOP
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 11AA040T-I/MS technical specifications.
General
Package/Case
MSOP
Contact Plating
Tin, Matte
Density
4Kb
Frequency
100kHz
Interface
Serial
Max Frequency
100kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
4Kb
Memory Type
EEPROM,
Min Supply Voltage
1.8V
Mount
Surface Mount
Organization
512X8
Package Quantity
2500
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Current
5mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 11AA040T-I/MS Datasheet
Download the complete datasheet for Microchip 11AA040T-I/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
