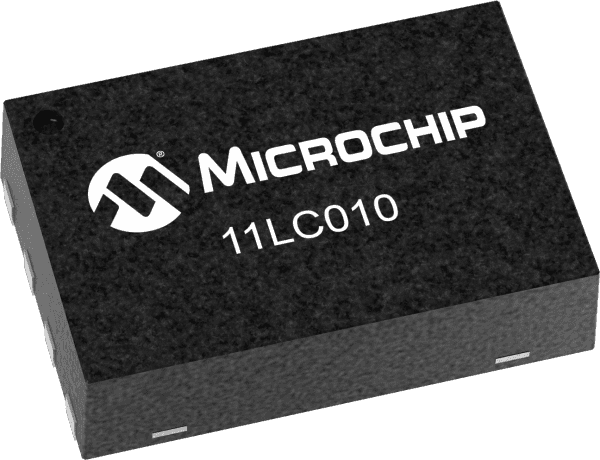

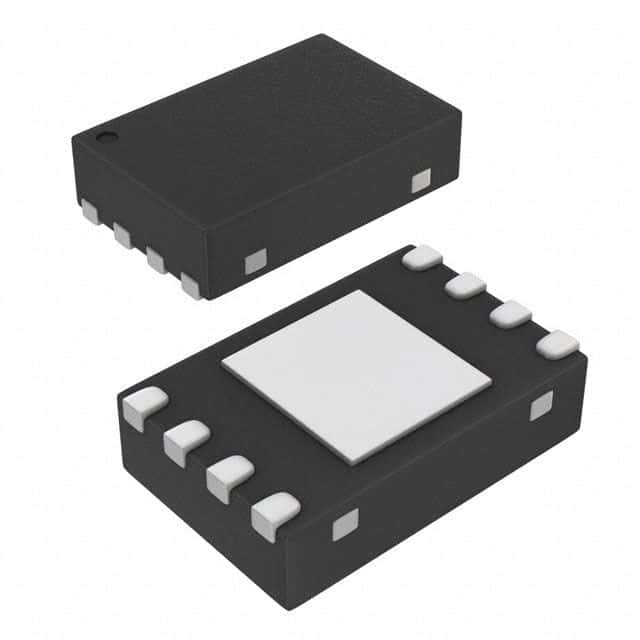

1Kb Serial EEPROM memory IC for surface mount applications. Features a 1-Wire interface and operates from a 2.5V to 5.5V supply range, with a typical operating voltage of 5V. Offers a maximum frequency of 100kHz and a memory organization of 128 words by 8 bits. Packaged in a TDFN8 (SOIC) with gold contact plating, this RoHS compliant component is suitable for operation between -40°C and 85°C. Includes write protection functionality.
Frequency100kHz
PackageSOIC
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 11LC010T-I/MNY technical specifications.
General
| Package/Case | SOIC |
| Contact Plating | Gold |
| Density | 1Kb |
| Frequency | 100kHz |
| Height | 0.73mm |
| Interface | Serial, 1-WIRE |
| Length | 2mm |
| Max Frequency | 100kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 1Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Words | 128 |
| Operating Supply Voltage | 5V |
| Organization | 128X8 |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 5mA |
| Termination | SMD/SMT |
| Width | 3mm |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
