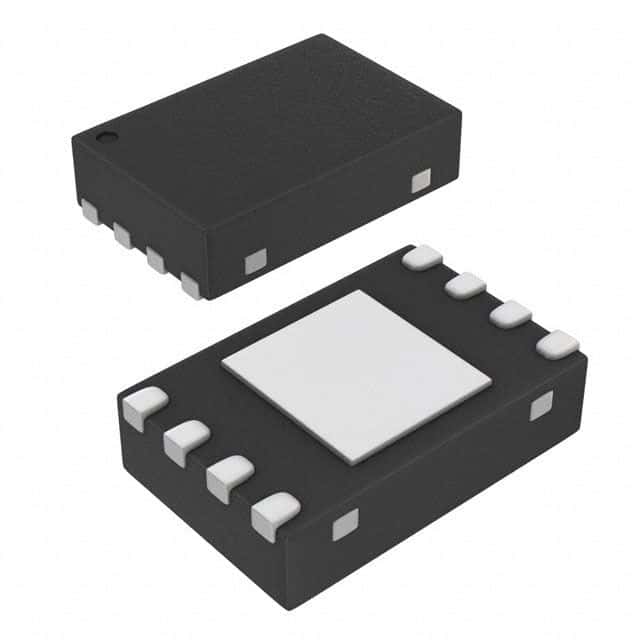

4Kb Serial EEPROM memory IC, organized as 512 x 8 bits, featuring a 1-Wire serial interface operating at up to 100kHz. This surface-mount device offers a wide operating voltage range of 2.5V to 5.5V and is housed in a compact 8-pin TDFN package with gold-plated contacts. It supports write protection and operates across an industrial temperature range from -40°C to 85°C.
Frequency100kHz
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 11LC040T-I/MNY technical specifications.
General
Contact Plating
Gold
Density
4Kb
Frequency
100kHz
Height
0.73mm
Interface
Serial, 1-WIRE
Length
2mm
Max Frequency
100kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
4Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Words
512
Operating Supply Voltage
5V
Organization
512X8
Package Quantity
3300
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5mA
Termination
SMD/SMT
Width
3mm
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 11LC040T-I/MNY Datasheet
Download the complete datasheet for Microchip 11LC040T-I/MNY to view detailed technical specifications.
