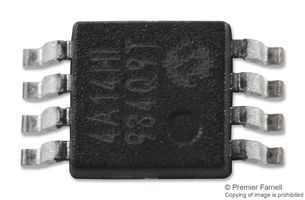

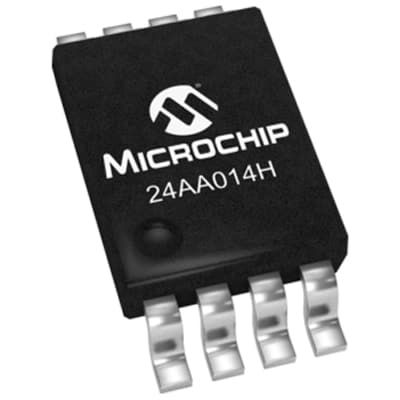

1Kb I2C/2-Wire Serial EEPROM, organized as 128x8, features a 400kHz maximum frequency and 900ns access time. This surface mount device, housed in an 8-pin MSOP package with tin matte plating, operates from 1.7V to 5.5V. It supports write protection and is RoHS compliant, with an operating temperature range of -40°C to 85°C.
Frequency400kHz
PackageMSOP
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24AA014H-I/MS technical specifications.
General
Access Time
900ns
Access Time-Max
900ns
Package/Case
MSOP
Contact Plating
Tin, Matte
Density
1Kb
Frequency
400kHz
Height
0.85mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
3mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
1Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
1.7V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
128X8
Package Quantity
100
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Termination
SMD/SMT
Width
3mm
Write Protection
YES
Compliance
RoHS
Compliant
