Technical Specifications
Microchip 24AA01T-I/MNY technical specifications.
General
| Access Time | 3500ns |
| Access Time-Max | 3.5us |
| Contact Plating | Tin, Matte |
| Density | 1Kb |
| Frequency | 100kHz |
| Interface | I2C, Serial |
| Max Frequency | 100kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 1Kb |
| Memory Type | EEPROM, |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5V |
| Organization | 128X8 |
| Package Quantity | 3300 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 24AA01T-I/MNY Datasheet
Download the complete datasheet for Microchip 24AA01T-I/MNY to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

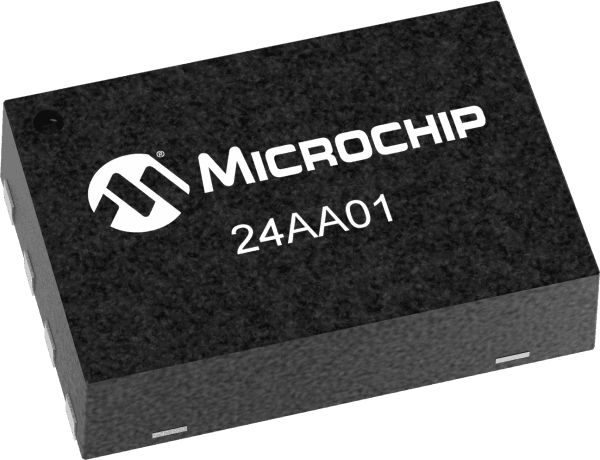

Product Images
