16Kb I2C/2-Wire Serial EEPROM for surface mount applications. Features a 400kHz maximum frequency and 900ns access time. Operates from 1.7V to 5.5V supply voltage with a maximum supply current of 3mA. Packaged in an 8-pin MSOP with dimensions of 3mm x 3mm x 0.85mm. RoHS compliant and includes write protection.
Frequency400kHz
PackageMSOP
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24AA16-I/MS technical specifications.
General
Access Time
900ns
Access Time-Max
3500ns
Package/Case
MSOP
Density
16Kb
Frequency
400kHz
Height
0.85mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
3mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
16Kb
Memory Type
Non-Volatile, , EEPROM
Min Supply Voltage
1.7V
Mount
Surface Mount
Package Quantity
100
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
3mA
Width
3mm
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24AA16-I/MS Datasheet
Download the complete datasheet for Microchip 24AA16-I/MS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

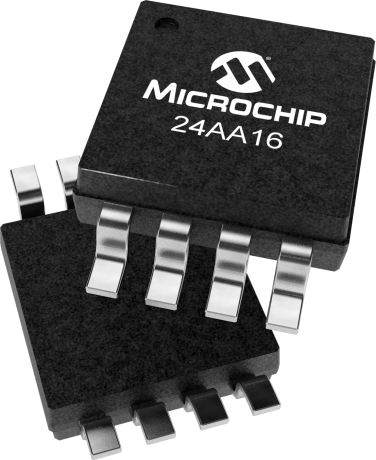

Product Images
