256Kb serial EEPROM memory, organized as 32K x 8, featuring an I2C/2-wire interface with a maximum frequency of 400kHz. This surface mount device offers a fast access time of 900ns and operates across a wide temperature range from -40°C to 85°C. It supports supply voltages from 1.7V to 5.5V and is housed in a RoHS compliant SOIC package with gold contact plating.
Frequency400kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24AA256T-I/SM technical specifications.
General
| Access Time | 900ns |
| Access Time-Max | 900ns |
| Package/Case | SOIC |
| Contact Plating | Gold |
| Density | 256Kb |
| Frequency | 400kHz |
| Interface | I2C, Serial |
| Lead Free | Lead Free |
| Max Frequency | 400kHz |
| Max Operating Temperature | 85°C |
| Max Supply Voltage | 5.5V |
| Memory Size | 256Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Organization | 32KX8 |
| Package Quantity | 2100 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Termination | SMD/SMT |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 24AA256T-I/SM Datasheet
Download the complete datasheet for Microchip 24AA256T-I/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

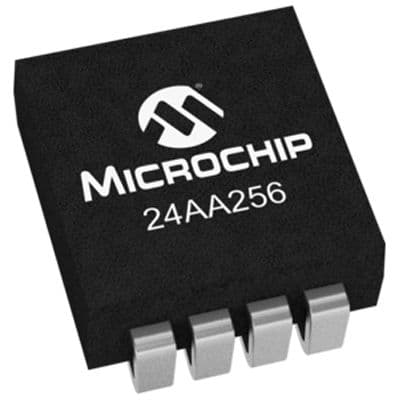

Product Images
