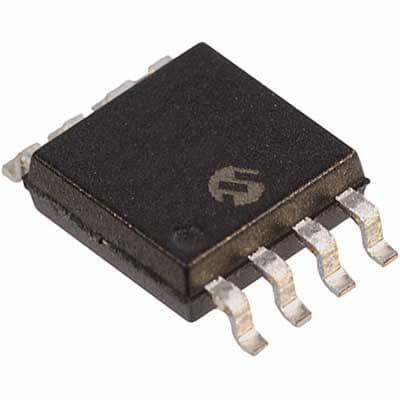

512Kb Serial EEPROM memory, organized as 64K x 8, featuring a 2-Wire/I2C interface. Operates with supply voltages from 1.8V to 5.5V, supporting frequencies up to 400kHz. This surface-mount SOIC package offers a maximum access time of 3500ns and includes write protection. RoHS compliant and lead-free, it operates within a temperature range of -40°C to 85°C.
Frequency100kHz
PackageSOIC
Current5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24AA512-I/SM technical specifications.
General
Access Time
900ns
Access Time-Max
3500ns
Package/Case
SOIC
Density
512Kb
Frequency
100kHz
Height
1.88mm
Interface
I2C, Serial, 2-Wire
Lead Free
Lead Free
Length
5.21mm
Max Frequency
400kHz
Max Operating Temperature
85°C
Max Supply Voltage
5.5V
Memory Size
512Kb
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
1.8V
Mount
Surface Mount
Organization
64KX8
Package Quantity
90
Packaging
Rail/Tube
Programming Voltage
5.5V
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
5mA
Supply Voltage-Nom
5.5V
Width
5.28mm
Write Cycle Time-Max (tWC)
5ms
Write Protection
YES
Compliance
RoHS
Compliant
