64Kb Serial EEPROM memory IC, organized as 8K x 8, featuring an I2C/2-Wire serial interface. This surface mount device operates with a minimum supply voltage of 1.8V and a maximum of 6V, with a typical supply current of 3mA. Access time is rated at 3500ns, and it supports a maximum frequency of 100kHz. The SOIC package has a matte tin contact plating, and the component is RoHS compliant.
Frequency100kHz
PackageSOIC
Current3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24AA65/SM technical specifications.
General
| Access Time | 3500ns |
| Access Time-Max | 3500ns |
| Package/Case | SOIC |
| Contact Plating | Tin, Matte |
| Density | 64Kb |
| Frequency | 100kHz |
| Height | 1.98mm |
| Interface | I2C, Serial, 2-Wire |
| Lead Free | Lead Free |
| Length | 5.33mm |
| Max Frequency | 100kHz |
| Max Operating Temperature | 70°C |
| Max Supply Voltage | 6V |
| Memory Size | 64Kb |
| Memory Type | EEPROM, |
| Min Operating Temperature | 0°C |
| Min Supply Voltage | 1.8V |
| Mount | Surface Mount |
| Number of Words | 8000 |
| Organization | 8KX8 |
| Package Quantity | 90 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 3mA |
| Supply Voltage-Nom | 6V |
| Termination | SMD/SMT |
| Width | 5.38mm |
| Write Cycle Time-Max (tWC) | 5ms |
| Write Protection | YES |
Compliance
| RoHS | Compliant |
Datasheet
Microchip 24AA65/SM Datasheet
Download the complete datasheet for Microchip 24AA65/SM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

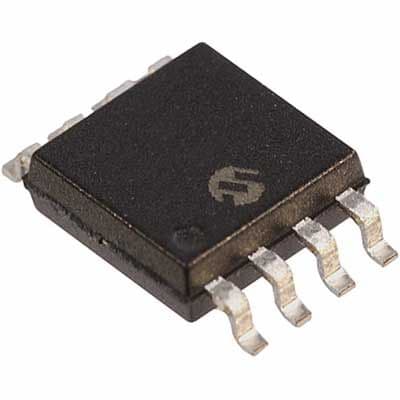

Product Images
