128-bit EEPROM memory IC with I2C serial interface, operating at up to 100kHz with a maximum frequency of 400kHz. Features a 900ns access time and a 16x8 organization. This surface mount component is housed in a TSSOP package with tin, matte contact plating, and operates from 4.5V to 5.5V. It supports write protection and is RoHS compliant, with a temperature range of -40°C to 125°C.
Frequency100kHz
PackageTSSOP
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24C00-E/ST technical specifications.
General
Access Time
900ns
Access Time-Max
3500ns
Package/Case
TSSOP
Contact Plating
Tin, Matte
Density
128b
Frequency
100kHz
Interface
I2C, 2-Wire, Serial
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Memory Size
128b
Memory Type
EEPROM,
Min Supply Voltage
4.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
16X8
Package Quantity
100
Packaging
Rail/Tube
Programming Voltage
5.5V
RoHS Compliant
Yes
Supply Current
2mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24C00-E/ST Datasheet
Download the complete datasheet for Microchip 24C00-E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

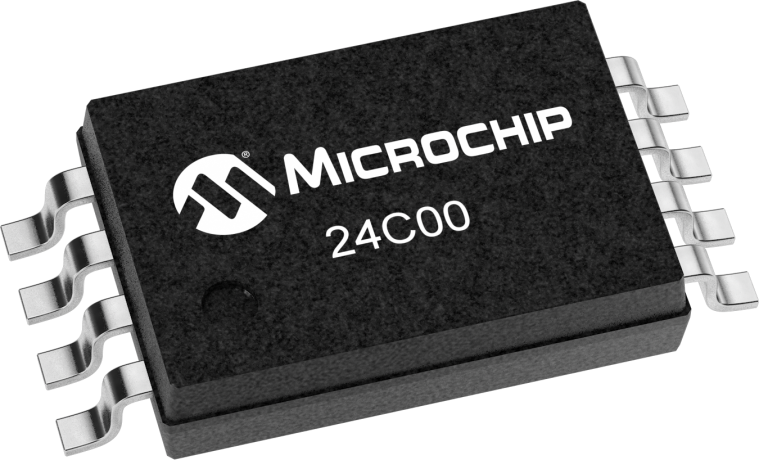

Product Images
