128-bit I2C/2-Wire serial EEPROM memory, organized as 16 x 8, offering a maximum operating frequency of 400kHz. Features a 900ns access time and operates from a 4.5V to 5.5V supply voltage range. Packaged in a lead-free, RoHS compliant TSSOP-8 surface mount package with tin-matte contact plating. Ideal for applications requiring reliable non-volatile data storage.
Frequency100kHz
PackageTSSOP
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Microchip 24C00T-E/ST technical specifications.
General
Access Time
900ns
Access Time-Max
3500ns
Package/Case
TSSOP
Contact Plating
Tin, Matte
Density
128b
Frequency
100kHz
Interface
I2C, 2-Wire, Serial
Lead Free
Lead Free
Max Frequency
400kHz
Max Operating Temperature
125°C
Max Supply Voltage
5.5V
Memory Size
128b
Memory Type
EEPROM,
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Surface Mount
Operating Supply Voltage
5V
Organization
16X8
Package Quantity
2500
Packaging
Tape and Reel
Programming Voltage
5.5V
RoHS Compliant
Yes
Supply Current
2mA
Write Protection
YES
Compliance
RoHS
Compliant
Datasheet
Microchip 24C00T-E/ST Datasheet
Download the complete datasheet for Microchip 24C00T-E/ST to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

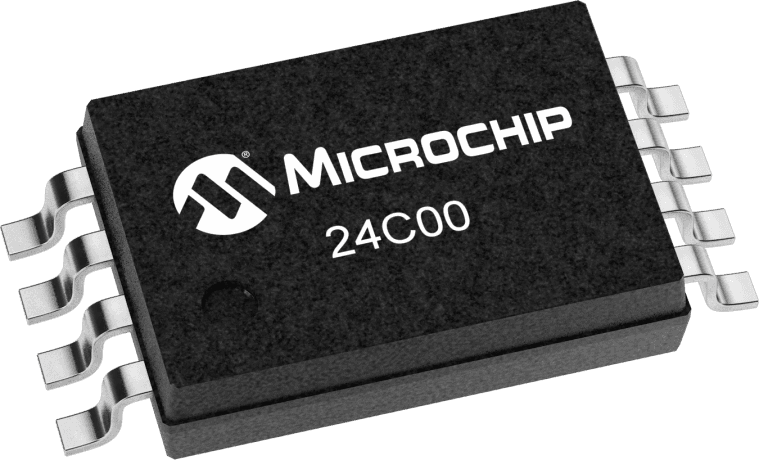

Product Images
